hydraulic claw jack internal structure detail view

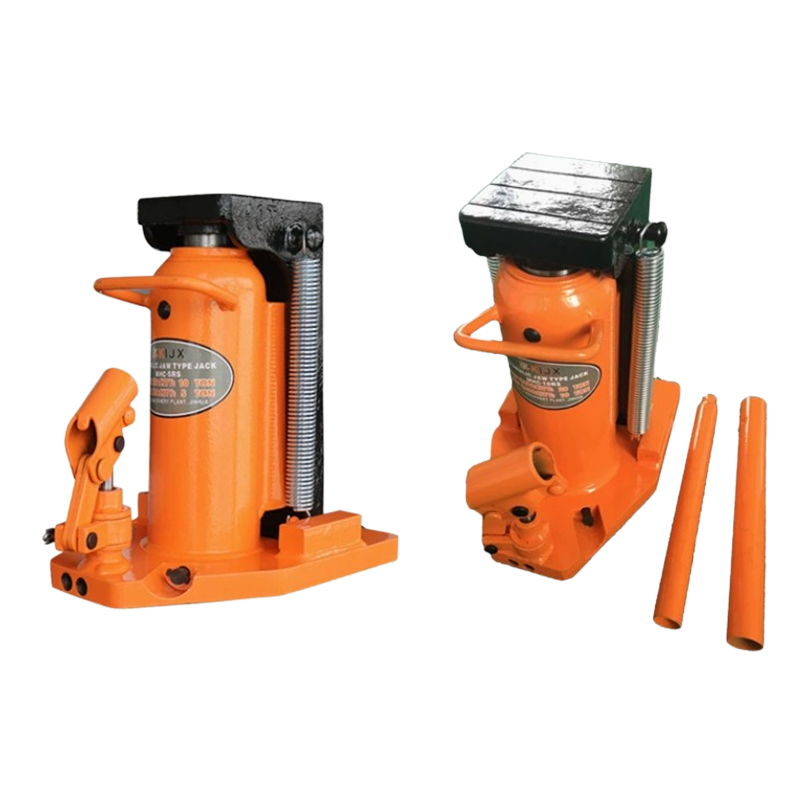

Low Profile Hydraulic Claw Jack 5‑50 Ton Duck‑bottle Type Lifting Jack for Industrial Repair

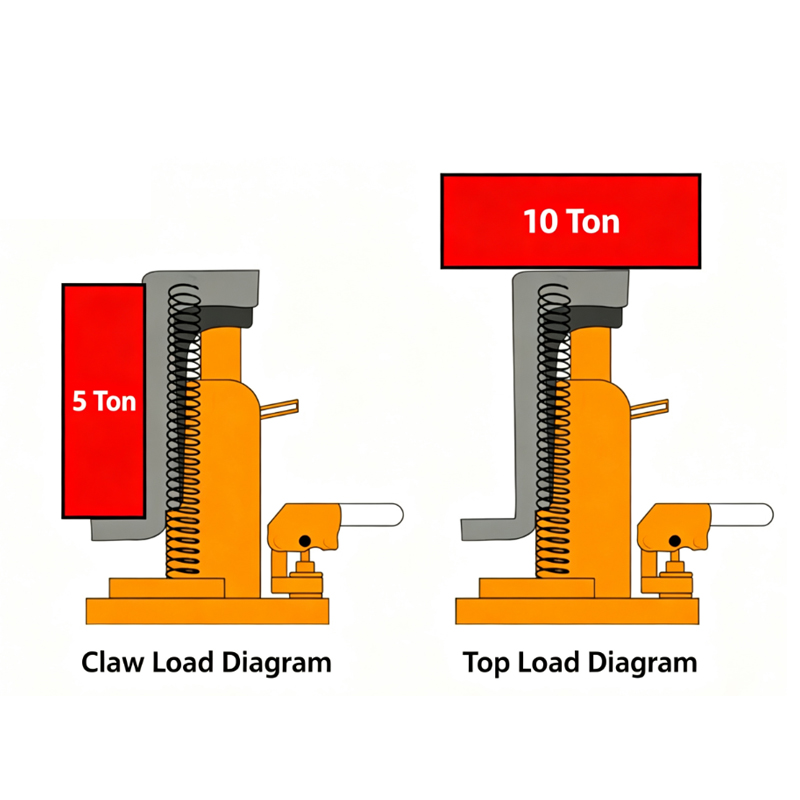

This hydraulic claw jack adopts duck‑mouth low‑profile design, available in 5T,10T,20T,30T,50T capacities. It delivers stable lifting for narrow‑space heavy‑duty moving and equipment maintenance, durable industrial‑grade construction for workshop and machinery repair work.

Product Model: SIEN-J-2004

Request A Quote

Categories: Jack, All Products
