Hand crank screw jack internal gear structure and dimension details

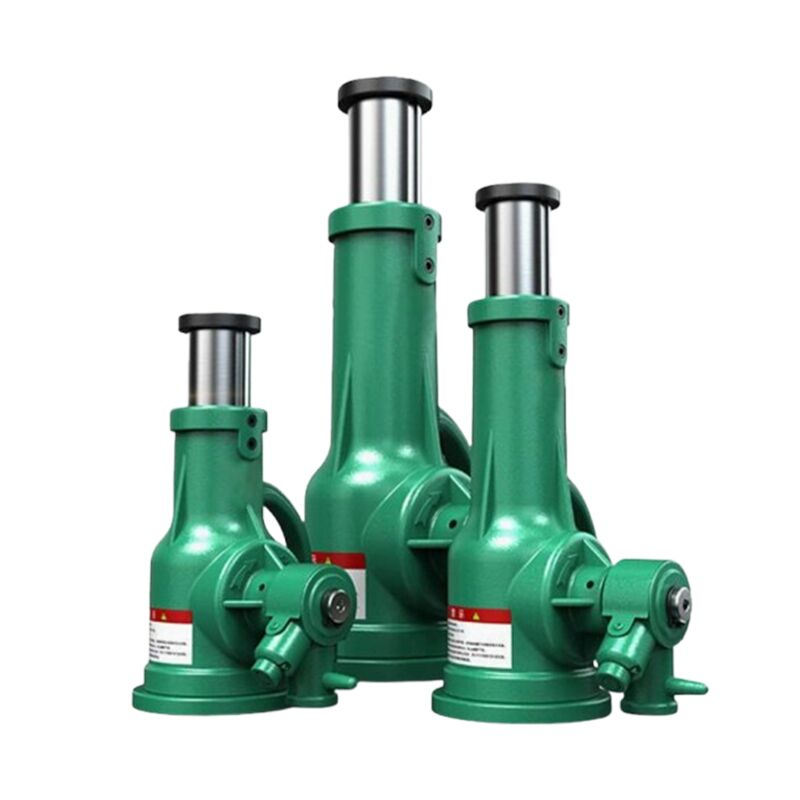

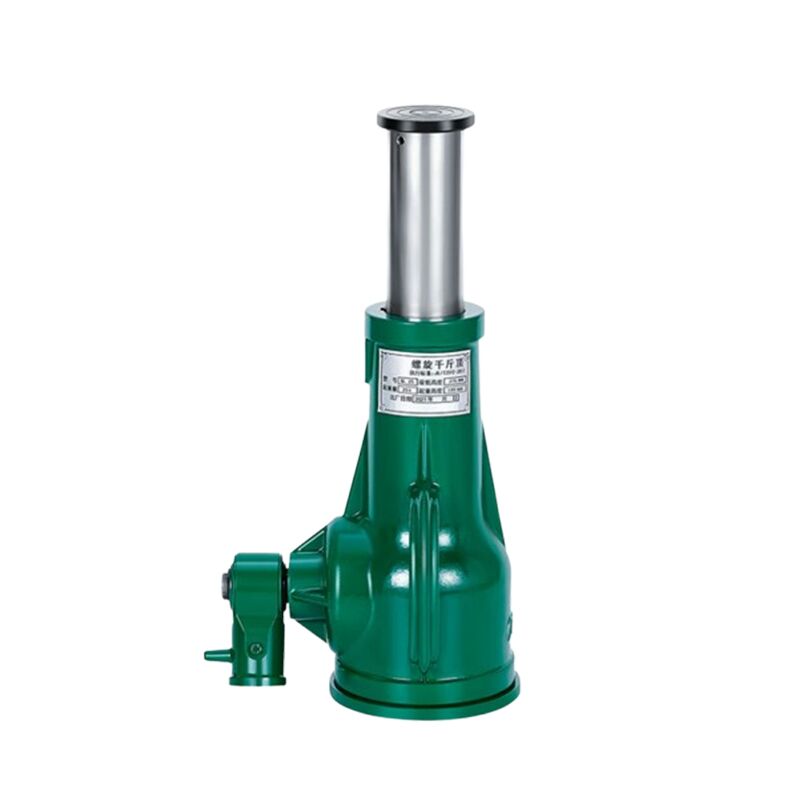

Low‑Profile Hand Crank Screw Jack 5‑200 Ton Self‑Locking Mechanical Gear Screw Jack for Industrial Lifting

This heavy‑duty hand crank screw jack adopts self‑locking gear structure, available in multiple load capacities from 3.2 ton to 200 ton. Low‑profile vertical design delivers stable lifting performance for machinery maintenance, factory assembly and heavy‑load lifting scenarios, reliable and long‑service‑life.

Product Model: SIEN-J-2002

Request A Quote

Categories: Jack, All Products
